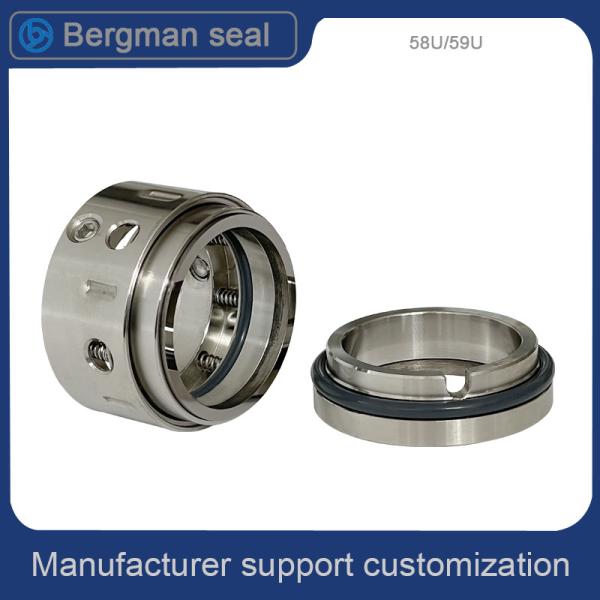

SS304 58U O Ring Oil Pump Mechanical Seal John Crane Type Metal Bellows
Mechanical Seal John Crane 58U Water Pump Seal O-Ring Seal Mechanical Seal
Basic Info.
Model NO.
Metal bellows seal
Manifold Pump Seal
58U Seal
Grundfos Pump Seal
Rubber Bellow Seal
Che Pump Seal
Mechanical Seal
Flygt pump seal
Pump Seal
Industrial Pump
Oil pump seal
ABS Pump Seal
Blackmer Seal
Automotive pump seal
Skeleton oil seal
Specification
14mm and 100mm
58U 58B O Ring 59U 59B PTFE Wedge
Mechanical seal
1. Operating limits
| Temperture in the sealed chamber: | -50~+200ºC |
| Pressure in the sealed chamber: | ≤1.7Mpa |
| Linear speed: | ≤25m/s |
| Mediums to be sealed: | water,oil,acid,alkali etc.moderate corrosive and below medium |
2. Materials:
Stationary ring: Ceramic,Silicon Carbide
Rotary ring: Silicon Carbide
Secondary seal: NBR,EPDM,,PTFE
Spring and metal parts: SS304,SS316
3. Application:
- Corrosive environments
- Chemical pumps
- Steam joints
- Food processing pumps
- Process pumps in refineries
- Cold and hot water pumps
- Seals for agitators and mixers
- Temperatures above 400 deg F
- Cryogenic applications
- Air Conditions
- High Speed Turbine Compressors
- Water turbines
4. Packages & Shipping
1. Package: 10PCS/CTN, carton size: 8X11X24cm
2. Packing: Air bubble film for inner packing and carton box for outer packing.
3. Shipping: By sea, by air, by Express(UPS/DHL/TNT/EMS/FedEx)
| MODEL |
D
|
D1
|
D3
|
D4
|
D7
|
L
|
L1
|
|
BGM58U-14
|
14
|
24
| 21 |
25
|
2
|
23
|
12.0
|
|
BGM58U-16
|
16
|
26
| 23 |
27
|
2
|
23
|
12.0
|
|
BGM58U-18
|
18
|
32
| 27 |
33
|
3
|
24
|
13.5
|
|
BGM58U-20
|
20
|
34
| 29 |
35
|
3
|
24
|
13.5
|
|
BGM58U-22
|
22
|
36
| 31 |
37
|
3
|
24
|
13.5
|
|
BGM58U-24
|
24
|
38
| 33 |
39
|
3
|
26.7
|
13.5
|
|
BGM58U-25
|
25
|
39
| 34 |
40
|
3
|
27
|
13.0
|
|
BGM58U-28
|
28
|
42
| 37 |
43
|
3
|
30
|
12.5
|
|
BGM58U-30
|
30
|
44
| 39 |
45
|
3
|
30.5
|
12.0
|
|
BGM58U-32
|
32
|
46
| 42 |
48
|
3
|
30.5
|
12.0
|
|
BGM58U-33
|
33
|
47
| 42 |
48
|
3
|
30.5
|
12.0
|
|
BGM58U-35
|
35
|
49
| 44 |
50
|
3
|
30.5
|
12.0
|
|
BGM58U-38
|
38
|
54
| 49 |
56
|
4
|
32
|
13.0
|
|
BGM58U-40
|
40
|
56
| 51 |
58
|
4
|
32
|
13.0
|
|
BGM58U-43
|
43
|
59
| 54 |
61
|
4
|
32
|
13.0
|
|
BGM58U-45
|
45
|
61
| 56 |
63
|
4
|
32
|
13.0
|
|
BGM58U-48
| 48 | 64 | 59 | 66 | 4 | 32 | 13.0 |
| BGM58U-50 | 50 | 66 | 62 | 70 | 4 | 34 | 13.5 |
| BGM58U-53 | 53 | 69 | 65 | 73 | 4 | 34 | 13.5 |
| BGM58U-55 | 55 | 71 | 67 | 75 | 4 | 34 | 13.5 |
| BGM58U-58 | 58 | 78 | 70 | 78 | 4 | 39 | 13.5 |
| BGM58U-60 | 60 | 80 | 72 | 80 | 4 | 39 | 13.5 |
| BGM58U-63 | 63 | 83 | 75 | 83 | 4 | 39 | 13.5 |
| BGM58U-65 | 65 | 85 | 77 | 85 | 4 | 39 | 13.5 |
| BGM58U-68 | 68 | 88 | 81 | 90 | 4 | 39 | 13.5 |
| BGM58U-70 | 70 | 90 | 83 | 92 | 4 | 45.5 | 14.5 |
| BGM58U-75 | 75 | 95 | 88 | 97 | 4 | 45.5 | 14.5 |
| BGM58U-80 | 80 | 104 | 95 | 105 | 4 | 45 | 15.0 |
| BGM58U-85 | 85 | 109 | 100 | 110 | 4 | 45 | 15.0 |
| BGM58U-90 | 90 | 114 | 105 | 115 | 4 | 50 | 15.0 |
| BGM58U-95 | 95 | 119 | 110 | 120 | 4 | 50 | 15.0 |
| BGM58U-100 | 100 | 124 | 115 | 125 | 4 | 50 | 15.0 |
Our Services
1. Convenient: 24th Hours sales/After-sales Service online or on the phone
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others
4.According to customers' drawing,customized specifications are welcomed
5.Low MOQ,small orders can be accepted.
We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original
1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.
2. Mechanical seals are available for different references Gorman-Rupp® pumps. Special models for the transfer of clean water, sewage, oil industry, agriculture and others.
GRN-38'1
3. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.
4. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.
5. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.
6. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.
7. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.
8. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.
9. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
10. Different models of mechanical seals compatible for Alfa-Laval® pumps series CM, FM, MR, LKH,GM and ALC. Also the models for the range of lobular SSP and SR pumps. Mechanical seals in different combination of materials tungsten carbide, silicon carbide, graphite; combined with different types of elastomers: NBR, EPDM and FKM.
11. Mechanical seals for ABS® submergible pumps specific wastewater treatment. Different models of mechanical seal available: oil chamber mechanical seal and water mechanical seal.
