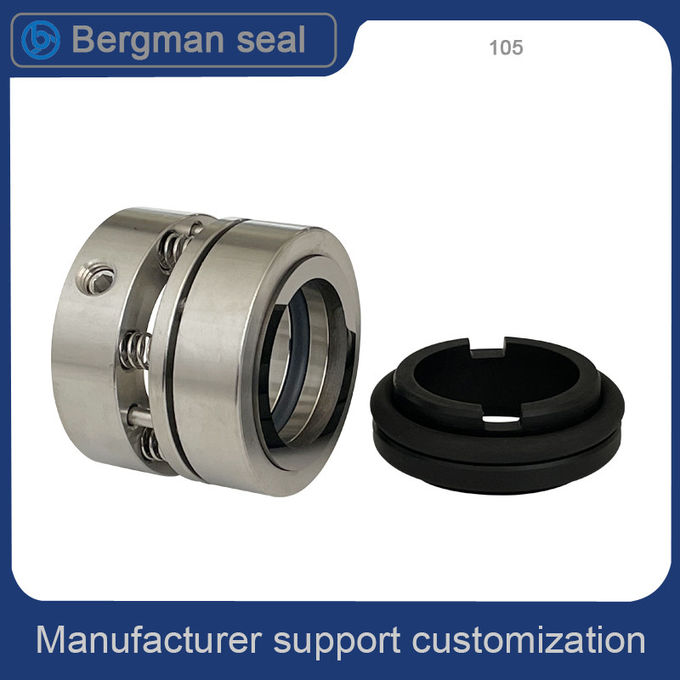

GB105 Type 18mm Automotive Water Pump Seal SS304 Metal Bellows

Mechanical Seal Type GB105 Industrial Pump O-Ring Seal Mechanical Seal

Basic Features

• Structure: Single End
• Pressure: Medium Pressure Mechanical Seals
• Speed: General Speed Mechanical Seal
• Temperature: High Temperature Mechanical Seal
• Performance: Wear
• Standard: DIN24960, ISO3069, GB6556-94
• Model NO.: Type 105
• Balance: Unbalanced
• Specification: Inner Diameter: 18 mm to 160 mm

Product Detailed Description

Type 105 Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps

Operation Parameters:

Mediums: weak acid, weak alkalis, water and solvents.

We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original

Fixing and Applying Directions of Mechanical Seals

1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.

Question : Are you a factory or a trade company?

Answer: We are a factory and have our top sales for the trade service.

Question : How can we pay?

Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Guangdong Borgman Seals Co., Ltd. is an enterprise specializing in the research and development, manufacturing and sales of mechanical seal products. The company has a first-class domestic R&D team, advanced automated production equipment and advanced testing equipment. The company's products cover rubber bellows mechanical seals, rubber sealing ring mechanical seals, PTFE mechanical seals, metal bellows mechanical seals, containerized mechanical seals, O.E.M mechanical seals and various sealing materials. The products can replace similar products of Borgman, John Crane, AES, Chesterton, Flowserve, and Roten. They are widely used in: aviation, aerospace, petroleum, chemical, electric power, metallurgy, food, pharmaceuticals, sewage treatment, agricultural irrigation, automotive water pumps and other industries. The company's products have excellent performance, excellent workmanship, and durability, and are deeply trusted and praised by domestic and foreign users.
